Siemens ES Series 200 Amp 42-Space 60-Circuit Main Breaker Indoor 3-Phase Load Center

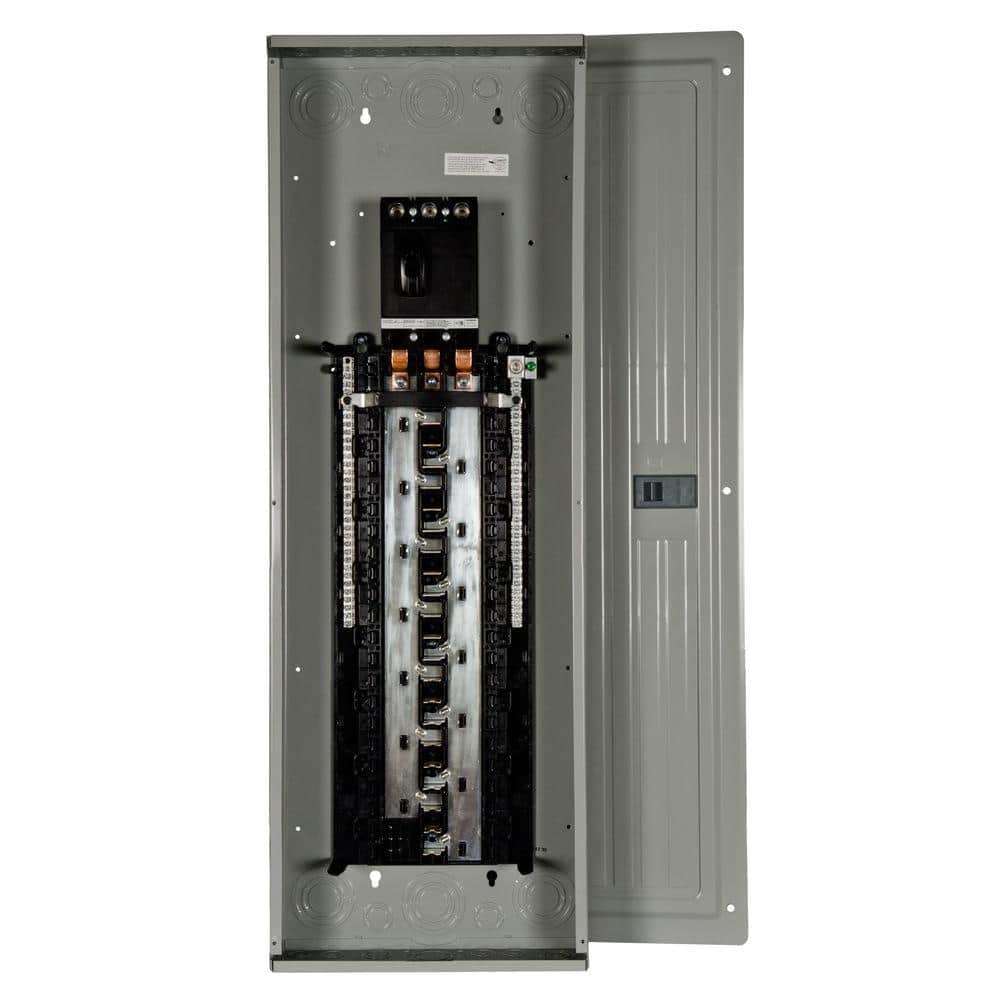

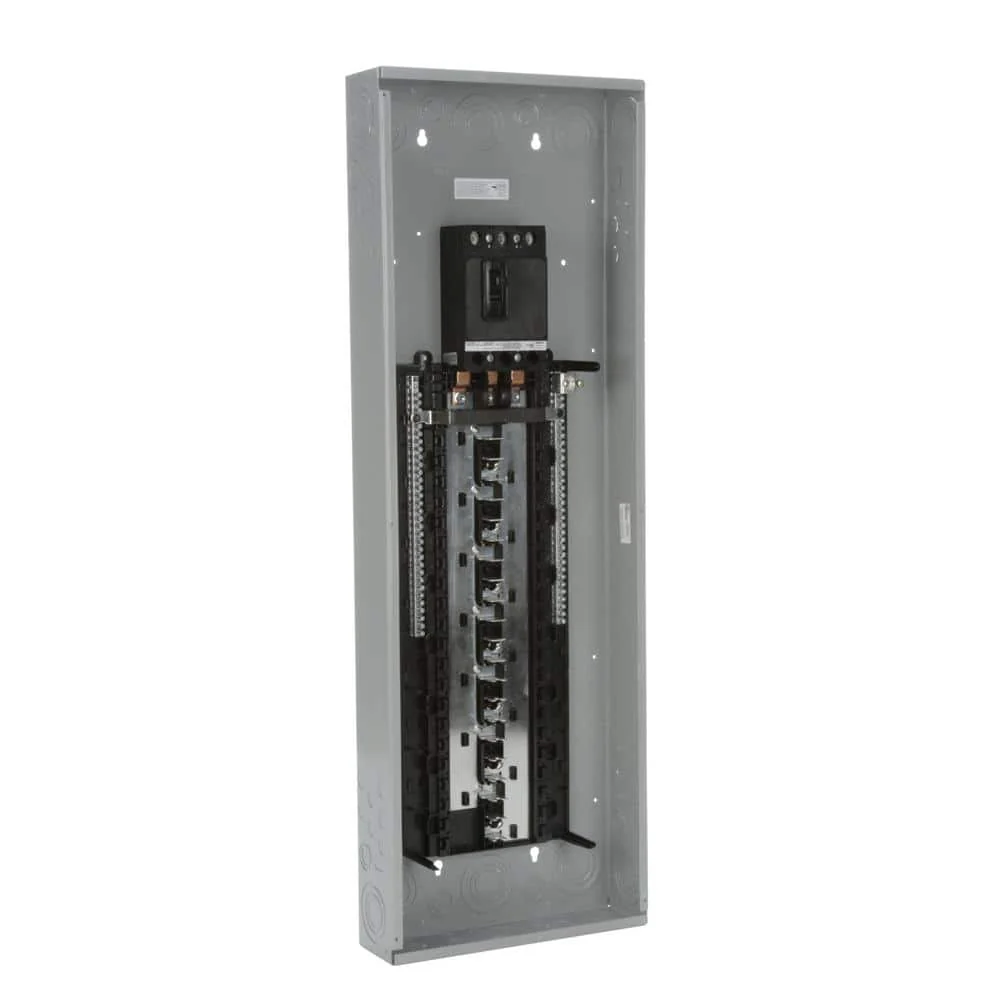

Siemens ES Series 200 Amp Load Center
The Siemens ES Series 200 Amp Load Center offers exceptional value and efficiency, tailored for quick installations. This 3-phase, 42-space, 60-circuit indoor load center features Siemens' patented Insta-wire and mounting trim tabs for ease of use, making it a top choice for residential and commercial power distribution.
Key Features:
- Insta-wire System: Speeds up installation with pre-positioned bond screws, reducing assembly time.
- Combination Head Screws: Enhance installation flexibility and ease in tight spaces.
- Sturdy Base Pan: Provides durability for challenging environments.
- Convertible Breaker: Allows conversion from main breaker to main lug.
- Dual Side Neutrals: Facilitates easier wiring and conductor management.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Main Breaker Panel |
| Connection Type | Non-Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 200 A |
| Mounting Type | Flush,Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 60 |
| Number of Spaces | 42 |
| Product Weight (lb.) | 45 lb |
| Series Type | ES |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Year |
| Product Depth (in.) | 3.88 in |
| Product Height (in.) | 42 in |
| Product Width (in.) | 14.25 in |
Frequently Asked Questions (FAQ):
Q: Is this load center suitable for outdoor use?
A: No, this Siemens ES Series Load Center is intended for indoor use only, as it is a NEMA type 1 enclosure.
Q: Can this main breaker be converted to a main lug configuration?
A: Yes, the main breaker can be converted to a main lug, but not vice versa.
Q: How is the neutral and ground system designed?
A: The load center features an Insta-wire neutral/ground system which arrives with screws backed out, ready for wire insertion, ensuring a faster and more secure installation.
Q: What are the panel's dimensions?
A: The panel measures 42 inches in height, 14.25 inches in width, and 3.88 inches in depth.
Streamlined Power, Elegantly Hidden
The Siemens ES Series Load Center elegantly marries function with form, redefining how you power your space. With its robust yet sleek construction, it seamlessly integrates into modern interiors, ensuring your power needs are met without compromising aesthetics. Style it within a utility room or sleek cabinetry to maintain clean, uninterrupted living spaces. This load center becomes an essential element of luxurious, efficient living.
Ensure reliable power distribution and quick installation with the Siemens ES Series Load Center — optimize your next project with superior efficiency.
