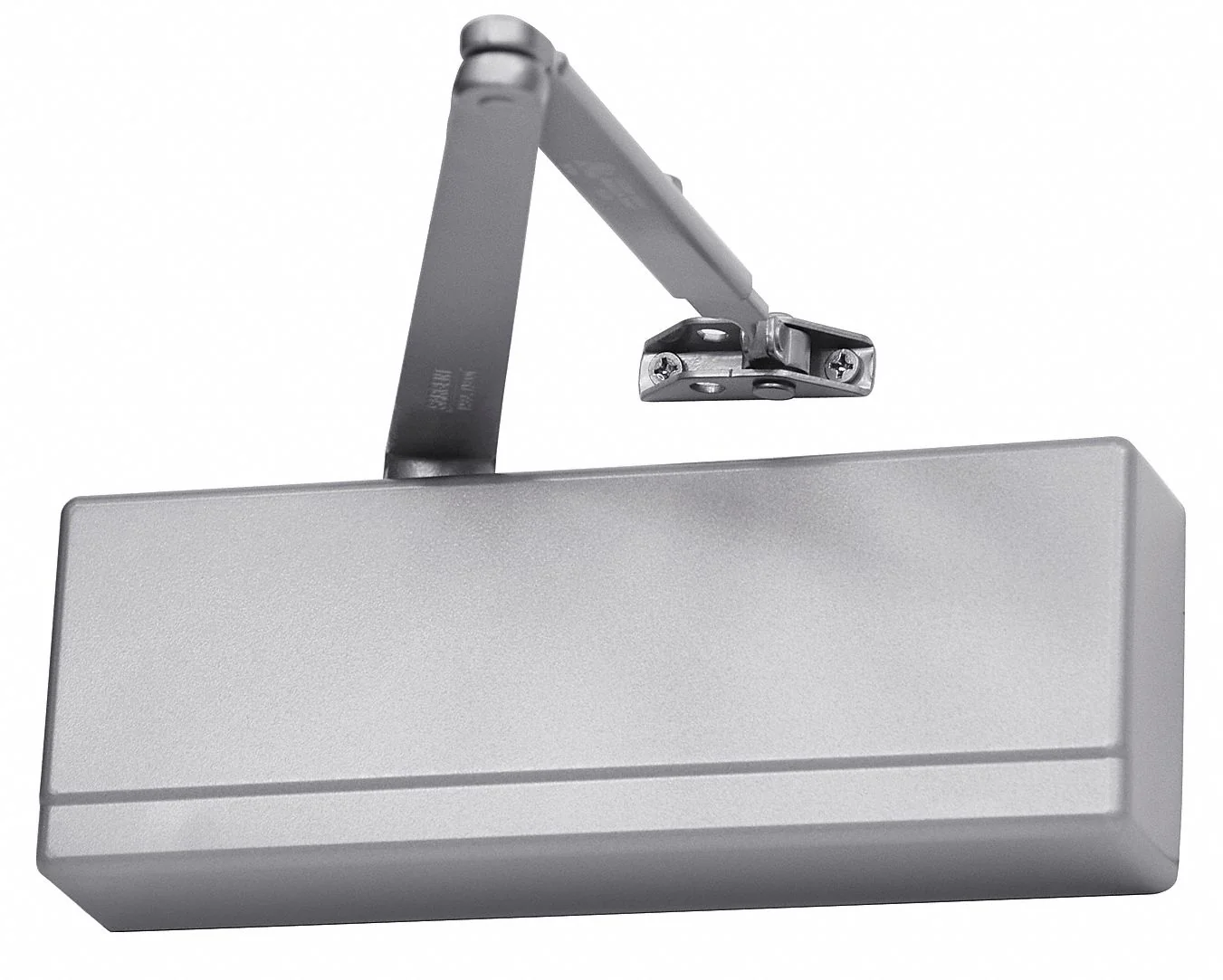

SARGENT Grade 1 Heavy Duty Aluminum Door Closer
SARGENT Heavy Duty Aluminum Door Closer
The SARGENT Grade 1 Aluminum Door Closer expertly manages high-traffic doors with durable cast iron construction and sleek design. Its reliable parallel arm mount ensures smooth operation on both interior and exterior doors. Ideal for commercial and residential spaces needing heavy-duty door control solutions.
Key Features:
- Durability: Made from robust cast iron for long-lasting strength and reliability.
- Sleek Design: Parallel arm mount offers a streamlined, tidy appearance when installed.
- Adjustable Spring: Provides customizable tension to accommodate door weight and usage.
- High Performance: Supports up to 25 million cycles, catering to high-traffic environments.
- UL Fire Rated: Provides up to 3-hour fire rating, ensuring safety and compliance.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 281 UO EN |
| Brand | SARGENT |
| Closer Mounting Type | Top Frame |
| Closer Series | 281 |
| Closer Type | Non-Hold Open |
| Color | Gray |
| Compatible with Brand | Sargent |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 120 ° |
| Features | High Impact Non-Corrosive Plastic Covers with Two Machine Screw Standard |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 2-5/16 in |
| Housing Height | 4-3/8 in |
| Energy Source | Hydraulic |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 48 in |
| Location Use | Interior/Exterior |
| Standards | ICC A117.1 |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 1 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-3/16 in |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 11-13/16 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Sub-brand | Closer |
| Length Between Mounting Holes | 10-3/8 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: How do I install the SARGENT door closer?
A: This door closer comes with a parallel arm mount suitable for both the top frame and push side of the door. Detailed instructions and all necessary hardware are included for easy installation.
Q: Is this door closer suitable for both indoor and outdoor use?
A: Yes, the SARGENT door closer is compatible with both interior and exterior doors, thanks to its durable construction and protective aluminum finish.
Q: What is the maximum door width this closer can accommodate?
A: It can accommodate doors up to 48 inches in width, making it suitable for most standard doors.
Q: Does this door closer meet ADA compliance requirements?
A: Yes, the SARGENT door closer is ADA compliant, ensuring accessibility standards for mobility-impaired individuals.
Q: What fire safety ratings does this closer have?
A: The SARGENT door closer boasts a UL fire rating of 3 hours, meeting strict safety standards for fire door assemblies.
Effortless Elegance for Every Entryway
The SARGENT Heavy Duty Aluminum Door Closer is a staple for refined spaces, seamlessly merging function with a minimalist profile. Picture it blending effortlessly with modern architectural lines, its aluminum finish catching the light in a subtle, refined manner. Use it to enhance the flow between rooms or frame the perfect entrance. This door closer isn't just a necessity—it's the finishing touch of sophistication every stylish space demands.
Ensure enduring performance and sleek aesthetics for your doors with the SARGENT Heavy Duty Door Closer—your trusted solution for high-traffic areas.
