LCN 5030 Series Concealed Mount Door Closer - Grade 1 Heavy Duty Aluminum
LCN Heavy Duty Concealed Door Closer

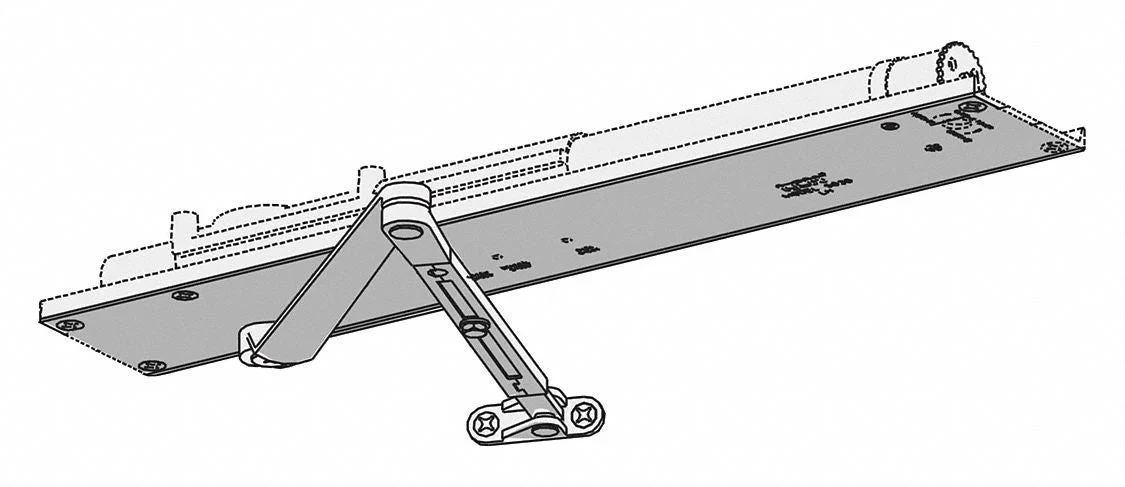

The LCN 5030 Series Concealed Mount Door Closer is designed for seamless integration within doors, featuring a sleek, unobtrusive appearance. Engineered from durable cast iron and finished with aluminum paint, this heavy-duty option is perfect for both interior and exterior use, delivering reliable performance with Grade 1 certification.
Key Features:
- Concealed Design: Built into the door with arm tucked under the frame for a clean, aesthetic look.
- Heavy-Duty Composition: Made from robust cast iron with an aluminum-painted finish, ensuring longevity and durability.
- Adjustable Spring System: Features a 1-1/8 in diameter piston and adjustable spring size for smooth door closures.
- Wide Operation Range: Supports a full 180° door opening, ideal for various commercial and residential applications.
- Easy Installation: Includes all necessary hardware and meets UL and ADA compliance standards.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 5033-REG RH AL |
| Brand | LCN |
| Closer Mounting Type | Concealed |
| Closer Series | 5030 |
| Closer Stop Type | Spring |
| Closer Type | Non-Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Door Opening - Minimum | 180 ° |
| Features | 1-1/8 in dia Piston |
| Finish | Aluminum |
| Housing Depth | 1-5/8 in |
| Housing Height | 1-5/8 in |
| Energy Source | Hydraulic |
| Includes Hardware | Hardware Included |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Product Type | Door Closer |
| Spring Size | 6 |
| Arm Type | Regular |
| Hand Orientation | Right-Handed |
| Housing Length | 21-7/8 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: Can this door closer be used for both interior and exterior doors?
A: Yes, the LCN 5030 Series Concealed Mount Door Closer is suitable for both interior and exterior applications.
Q: Is this door closer ADA compliant?
A: Yes, the door closer complies with ADA standards, ensuring accessibility.
Q: What is the maximum door opening angle for this closer?
A: The LCN 5030 closer allows a door opening angle of up to 180°, providing flexibility for various installation needs.
Q: Is the installation hardware included with this closer?
A: Yes, all necessary installation hardware is included.
Seamless Elegance in Motion
The LCN 5030 Series Concealed Door Closer transforms ordinary door functionality into a seamless fusion of form and function. Its sleek, integrated design harmonizes with any decor, ensuring a clean visual continuity in your space. The soft, whispering closure of doors adds a touch of elegance, making this closer a sublime choice for the discerning interior aficionado. Elevate your environment with a product that embodies both sophistication and practical luxury.
Upgrade to the LCN 5030 Series Concealed Door Closer now and experience the perfect blend of elegance and functionality in every entryway.
Original: $1,266.68
-65%$1,266.68
$443.34
