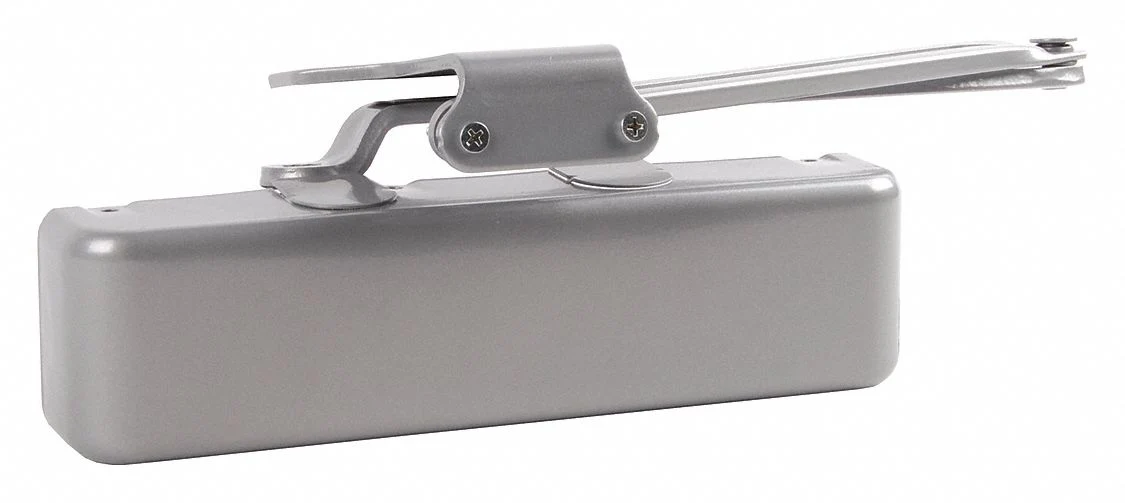

LCN 4031 Series Grade 3 Light Duty Parallel Door Closer - Aluminum Finish
LCN Parallel Mount Door Closer
The LCN 4031 Series Parallel Mount Door Closer is designed for light-duty applications while delivering reliable performance. With its sleek and aesthetic aluminum finish, this door closer is perfect for both interior and exterior doors. Its durable cast iron construction ensures longevity and effectiveness, making it an essential addition for maintaining the functionality and appearance of any entryway.
Key Features:
- Sleek Design: Features a parallel arm mount for a compact, aesthetically pleasing appearance.
- Durable Construction: Made with cast iron and finished in aluminum for added durability and style.
- Versatile Usage: Suitable for interior and exterior doors with a maximum opening angle of 180°.
- Ease of Installation: Includes all necessary hardware for hassle-free installation and setup.
- Adjustable Spring: Features an adjustable spring type catering to various door weight requirements.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 4031-LD/PA AL |
| Brand | LCN |
| Closer Mounting Type | Parallel |
| Closer Series | 4031 |
| Closer Stop Type | Standard |
| Closer Type | Non-Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Finish | Aluminum |
| Housing Depth | 2-3/4 in |
| Housing Height | 5 in |
| Energy Source | Hydraulic |
| Includes | Metal Cover |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 47-124/125 in |
| Location Use | Interior/Exterior |
| Standards | BAA |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 1 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Exterior Door Width - Maximum | 36 in |
| Product Type | Door Closer |
| Projection | 1-3/4 in |
| Spring Size | 4 |
| Hand Orientation | Non-Handed |
| Housing Length | 10-3/8 in |
| Operation Style | Manual |
| Performance Duty Rating | 3 |
| Length Between Mounting Holes | 1-23/32 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 3 - Light Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: How is the LCN 4031 Grade 3 Light Duty Door Closer mounted?
A: This door closer uses a parallel mounting system, attaching to the push side of the door with the arm mounted underneath the frame.
Q: Can this door closer be used on both interior and exterior doors?
A: Yes, the LCN 4031 is designed for both interior and exterior applications, offering versatile and reliable performance.
Q: Is the LCN 4031 ADA compliant?
A: Yes, this door closer is ADA compliant, ensuring it meets accessibility standards.
Q: What materials are used in the construction of this door closer?
A: The door closer is constructed with durable cast iron and features an aluminum finish, providing both strength and style.
Q: Does this product come with installation hardware?
A: Yes, the LCN 4031 includes all necessary hardware for installation, ensuring a straightforward setup process.
Elegance Meets Functionality with LCN's Parallel Door Closer
Transform any entryway into a seamless blend of style and functionality with LCN's 4031 Series Parallel Door Closer. The sleek aluminum finish offers a modern aesthetic while maintaining the durability expected from premium door hardware. Its design is perfect for creating subtle, unobtrusive lines that complement your interior's elegance without sacrificing performance. This door closer is the cornerstone of refined entrances, ensuring that every door operation is smooth and sophisticated, anchoring a luxurious living experience.
Elevate your door's functionality and aesthetic with the LCN 4031 Series Door Closer — order now to enhance your space effortlessly.
