Eaton CH 30 Amp 240 Volts 2-Pole Circuit Breaker with Trip Flag
Eaton 30 Amp 240V 2-Pole Circuit Breaker
The Eaton CH 30 Amp 240V 2-Pole Circuit Breaker is designed for enhanced safety and reliability in residential electrical systems. Featuring a unique trip flag for easy status indication, it offers a one-step reset and modern CH load center compatibility, ensuring efficient power protection for your home.
Key Features:
- Safety: Protects against overheating and fault currents.
- Visual Indicator: Trip flag clearly shows tripped status.
- Durability: Crafted with high-quality materials for long-lasting performance.
- Ease of Use: Simple one-step reset feature.

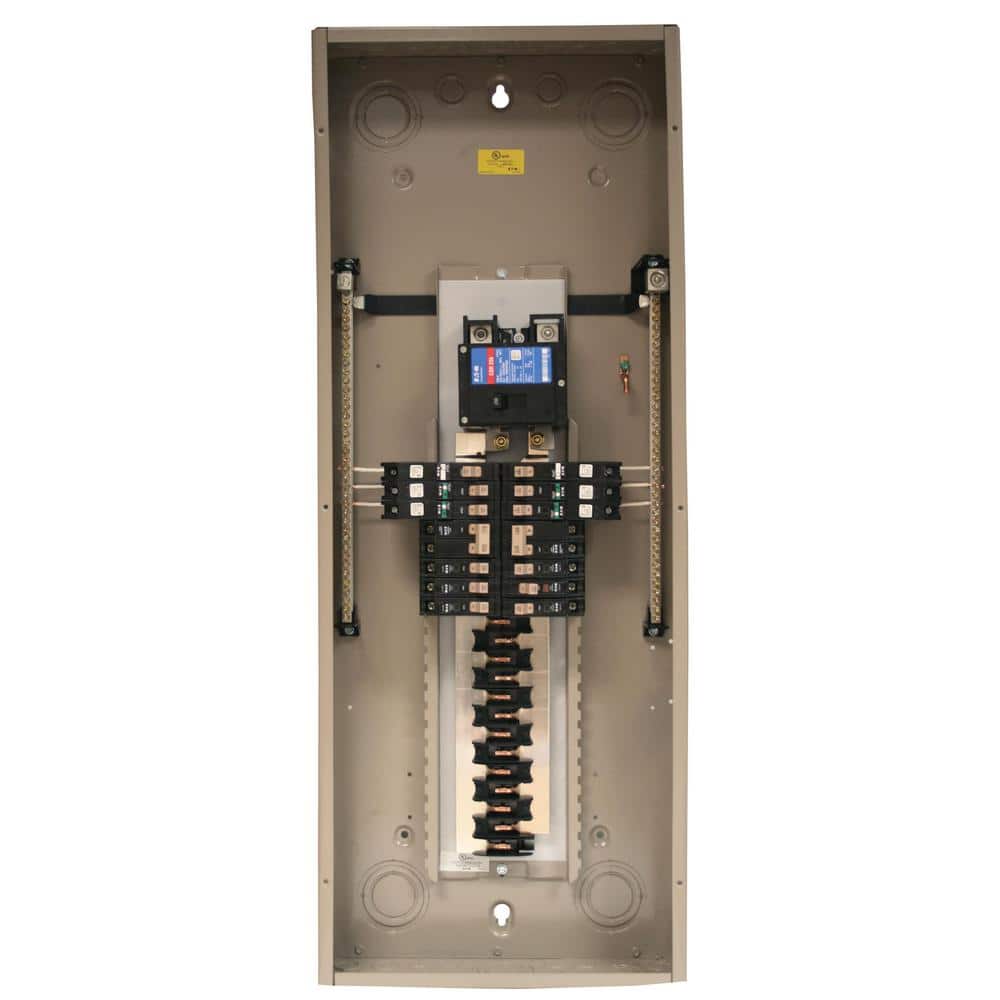

- Compatibility: Designed for type CH load centers only.
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Neutral |
| Interruption Type | Standard Trip |
| Maximum Amperage (A) | 30 A |
| Mounting Type | Plug-On |
| Number of Poles | Double |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Product Weight (lb.) | .55 lb |
| Series Type | CH |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Limited Lifetime Warranty according to the Warranty Policy |
| Product Depth (in.) | 10 in |
| Product Height (in.) | 4 in |
| Product Width (in.) | 1.50 in |
Frequently Asked Questions (FAQ):

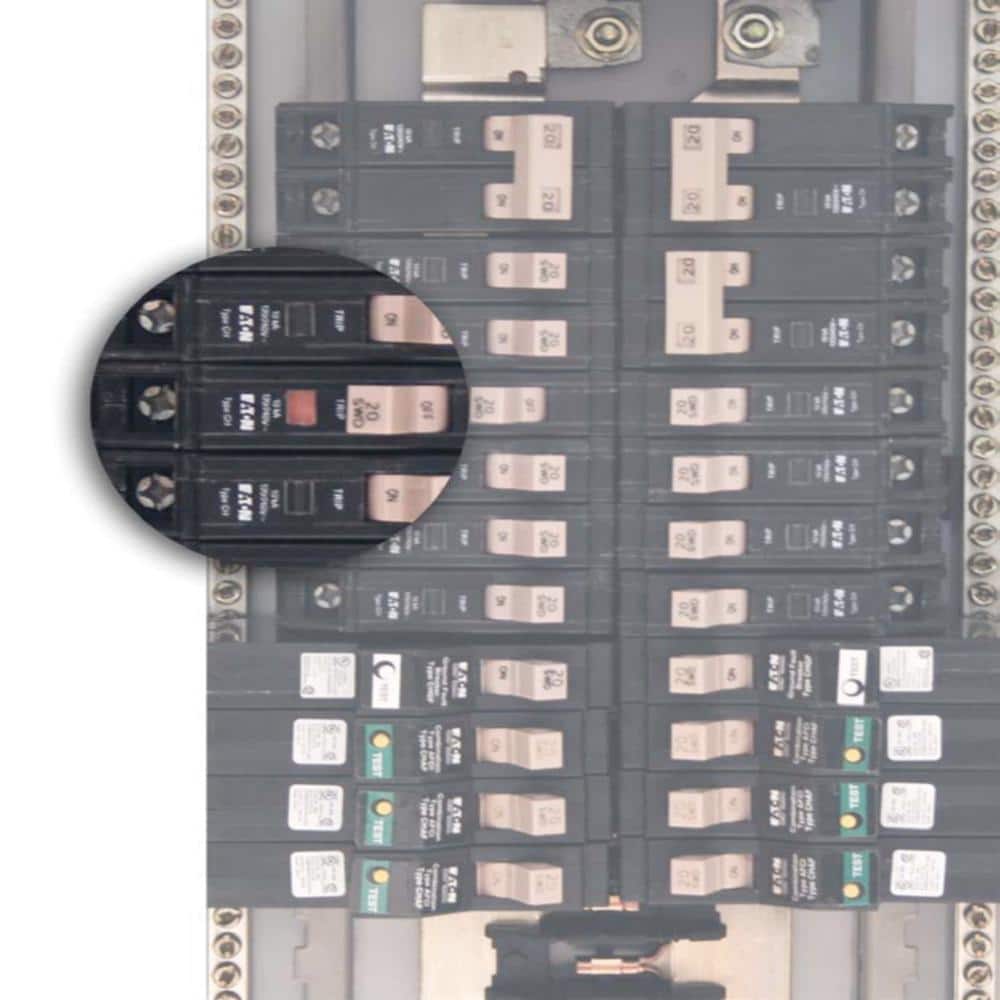

Q: How does the trip flag work on this circuit breaker?
A: The trip flag visually indicates the breaker's status. When the breaker trips, the flag will show, making it easy to identify without testing circuits.
Q: Can this circuit breaker be used in any breaker panel?
A: No, it is specifically designed for use with Eaton type CH load centers.
Q: What does 'HACR rated' mean?
A: HACR stands for Heating, Air Conditioning, and Refrigeration. This rating ensures the breaker is suitable for group motor installations typically found in HVAC applications.
Q: Does the Eaton CH 30 Amp breaker support copper and aluminum wires?
A: Yes, it supports both copper and aluminum wires, handling (1) #14-8 and (2) #14-10 AWG at 60°C or 75°C.
Q: What is the warranty for this product?
A: The circuit breaker comes with a Limited Lifetime Warranty, offering peace of mind with your purchase.
Elevate Your Electrical Safety with Elegant Simplicity
With the Eaton CH Circuit Breaker, transform mundane electrical panels into a seamless part of your sophisticated home environment. Not just a necessity, but a refined choice with its sleek design and intuitive technology like the trip flag – an elegant touch providing both functionality and aesthetics. Embrace its integration by coordinating with your contemporary interiors, knowing that such reliable performance guarantees well-appointed living spaces defined by luxury and security. Eaton ensures protection is a part of the grand design, essential for modern, sophisticated living.
Secure your home's electrical system with the trusted performance of Eaton's CH 30 Amp Circuit Breaker today!
