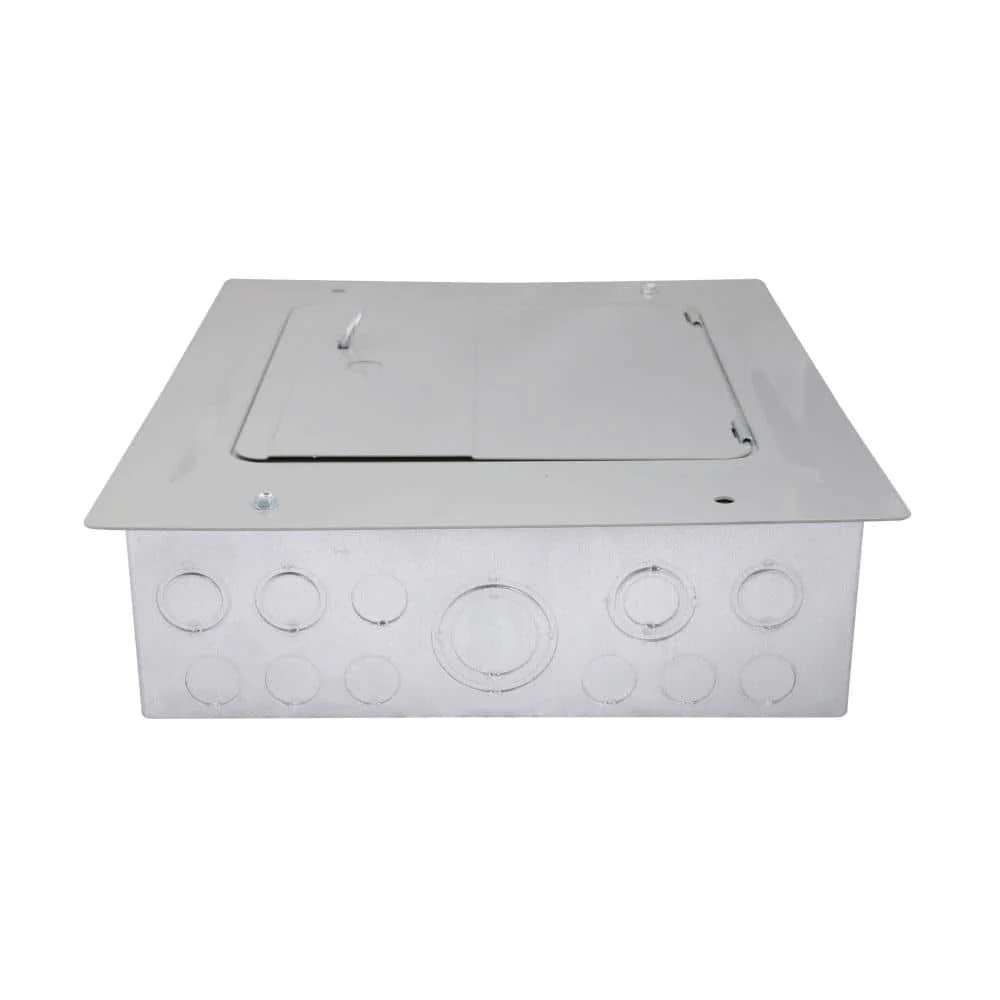

Eaton BR 125 Amp 6-Space 12-Circuit Indoor Main Lug Flush Door with Ground Bar
Eaton BR 125 Amp Indoor Main Lug Panel
The Eaton BR 125 Amp Indoor Main Lug Panel is crafted for seamless power distribution and safety across circuits, making it perfect for garages, home additions, or workshops. Engineered with a steel back pan and aluminum bus for durability, this panel ensures reliable performance while housing your electrical breakers.
Key Features:
- Ease of Installation: Built-in drywall marking guides ensure precise and easy flush mounting.
- Durable Design: Steel back pan and tin-plated aluminum bus offer robust and reliable breaker mounting.
- Flexibility: Knockouts on all sides allow versatile wiring configurations.
- Space Efficiency: Accommodates up to 12 circuits within a compact 6-space design.
- Trusted Brand: Over 100 years of Eaton reliability and safety in electrical products.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 125 A |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 12 |
| Number of Spaces | 6 |
| Product Weight (lb.) | 9.3 lb |
| Series Type | BR |
| Voltage (V) | 120/240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | 10 Year Limited |
| Product Depth (in.) | 12.8 in |
| Product Height (in.) | 4.3 in |
| Product Width (in.) | 14.8 in |
Frequently Asked Questions (FAQ):
Q: Can this panel be used outside?
A: No, the Eaton BR 125 Amp panel is designed for indoor use only as it's NEMA 1 rated.
Q: Is this panel suitable for a DIY installation?
A: While the panel is designed for easier installation, it's advisable to hire a licensed electrician to ensure compliance with local codes and standards.
Q: Does this panel include a built-in ground bar?
A: Yes, the ground bar GBK10 is pre-installed for your convenience.
Q: What is the maximum wire size that this panel can accommodate?
A: The panel supports wire sizes ranging from #14 to 1 AWG Cu/Al.
Q: How many breakers can this panel support?
A: The panel can support up to 12 circuits, making it adaptable to various branching needs.
Empower Your Space with Seamless Power Distribution
Imagine the Eaton BR 125 Amp panel as the unassuming maestro of your electrical symphony, perfectly orchestrating your home's energy needs with an understated sophistication. Its sleek flush door design blends seamlessly into any utility setting, offering both function and form—a testament to dedicated craftsmanship. Envision this panel as the backbone of your creative spaces, from workshops humming with invention to serene solarium retreats powered efficiently. It's not just a panel; it's an essential core of luxurious, uninterrupted living.
Ensure reliable and efficient power distribution with the Eaton BR 125 Amp Indoor Main Lug Panel—order yours today and experience unmatched quality and safety.
