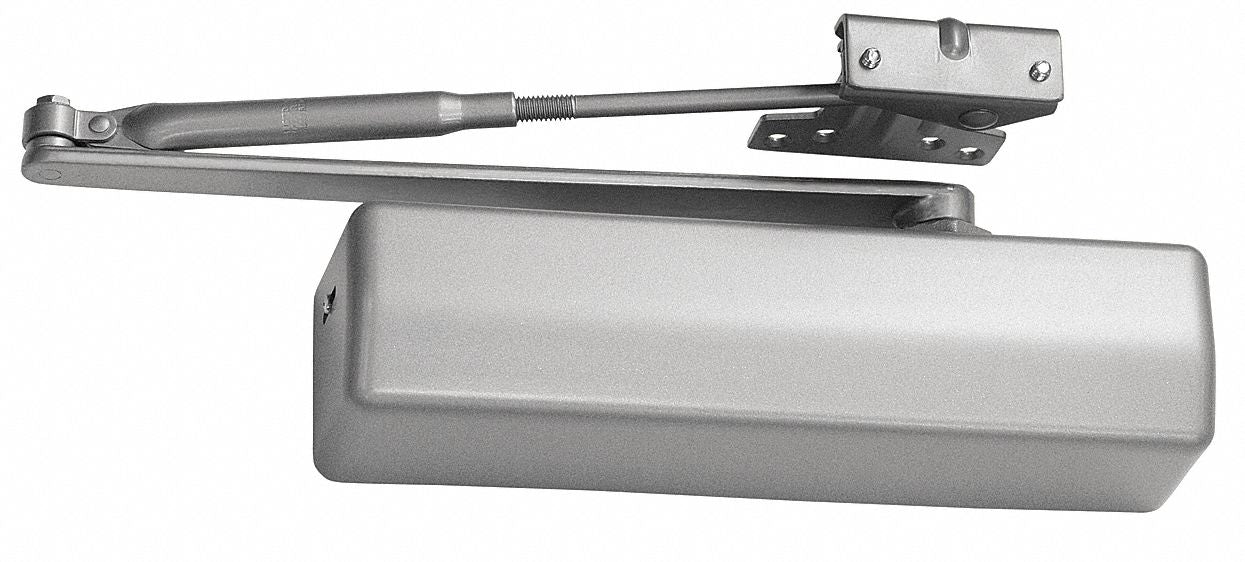

CORBIN Heavy-Duty Grade 1 Aluminum Parallel Mount Door Closer
Heavy-Duty Parallel Mount Door Closer
The CORBIN Heavy-Duty Grade 1 Door Closer is engineered for durability and functionality, with a sleek, concealed parallel arm design that enhances any entrance. Made from robust aluminum and equipped with adjustable hydraulic controls, this closer ensures reliable performance even in high-traffic areas. Ideal for both interior and exterior doors, it can withstand up to 25 million cycles, meeting the toughest demands of commercial spaces.
Key Features:
- Sleek Design: The parallel arm folds beneath the frame for a discreet, stylish appearance.
- Max Durability: Grade 1 performance allows up to 25 million closing cycles, suitable for heavy-duty use.
- Adjustable Spring: Versatile spring tension adaptable to different door weights and sizes.
- Hydraulic Control: Provides smooth, controlled closing to prevent door slamming.
- Vandal-Resistant: Built with vandal-resistant features to ensure longevity even in challenging environments.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | DC3210 689 |
| Brand | CORBIN |
| Closer Mounting Type | Parallel |
| Closer Series | DC3000 |
| Closer Type | Hold Open |
| Color | Gray |
| Compatible with Brand | CORBIN RUSSWIN |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 110 Ā° |
| Door Opening - Minimum | 85 Ā° |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 2-3/4 in |
| Housing Height | 3 in |
| Energy Source | Hydraulic |
| Includes | Self Drilling Screws |
| Door Width Campatibility | 60 in |
| Location Use | Interior/Exterior |
| Properties | Vandal-Resistant |
| Standards | BAA |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 1 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Door Weight - Maximum | 250 lb |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-3/4 in |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 11-5/8 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Sub-brand | 10 |
| Length Between Mounting Holes | 4-5/16 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: Can this door closer be installed on exterior doors?
A: Yes, the CORBIN Heavy-Duty Door Closer is suitable for both interior and exterior doors, offering performance that endures various conditions.
Q: Is this door closer ADA compliant?
A: Yes, the CORBIN Door Closer is ADA compliant, making it suitable for applications where accessibility is a priority.
Q: What is the maximum door weight this closer can handle?
A: The CORBIN Door Closer can accommodate doors weighing up to 250 pounds.
Q: What tools are needed for installation?
A: Self-drilling screws are included for installation, though additional tools such as a screwdriver and drill may be required.
Q: What is the fire rating for this door closer?
A: This door closer has a 3-hour fire rating, ensuring high safety standards in commercial settings.
Elegance Meets Functionality in Every Close
The CORBIN Heavy-Duty Door Closer seamlessly blends elegance with robust utility, closing doors with a graceful touch that feels both powerful and refined. Its concealed parallel arm becomes an aesthetic asset, offering a minimalist profile that enhances architectural lines. Perfect for both modern and traditional settings, it not only adds functionality but also contributes to a sense of controlled elegance so essential to luxurious interiors.
Ensure your doors' longevity and eleganceādiscover the reliability of the CORBIN Heavy-Duty Door Closer today!
Original: $405.16
-65%$405.16
$141.81
Description
Heavy-Duty Parallel Mount Door Closer
The CORBIN Heavy-Duty Grade 1 Door Closer is engineered for durability and functionality, with a sleek, concealed parallel arm design that enhances any entrance. Made from robust aluminum and equipped with adjustable hydraulic controls, this closer ensures reliable performance even in high-traffic areas. Ideal for both interior and exterior doors, it can withstand up to 25 million cycles, meeting the toughest demands of commercial spaces.
Key Features:
- Sleek Design: The parallel arm folds beneath the frame for a discreet, stylish appearance.
- Max Durability: Grade 1 performance allows up to 25 million closing cycles, suitable for heavy-duty use.
- Adjustable Spring: Versatile spring tension adaptable to different door weights and sizes.
- Hydraulic Control: Provides smooth, controlled closing to prevent door slamming.
- Vandal-Resistant: Built with vandal-resistant features to ensure longevity even in challenging environments.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | DC3210 689 |
| Brand | CORBIN |
| Closer Mounting Type | Parallel |
| Closer Series | DC3000 |
| Closer Type | Hold Open |
| Color | Gray |
| Compatible with Brand | CORBIN RUSSWIN |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 110 Ā° |
| Door Opening - Minimum | 85 Ā° |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 2-3/4 in |
| Housing Height | 3 in |
| Energy Source | Hydraulic |
| Includes | Self Drilling Screws |
| Door Width Campatibility | 60 in |
| Location Use | Interior/Exterior |
| Properties | Vandal-Resistant |
| Standards | BAA |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 1 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Door Weight - Maximum | 250 lb |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-3/4 in |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 11-5/8 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Sub-brand | 10 |
| Length Between Mounting Holes | 4-5/16 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: Can this door closer be installed on exterior doors?
A: Yes, the CORBIN Heavy-Duty Door Closer is suitable for both interior and exterior doors, offering performance that endures various conditions.
Q: Is this door closer ADA compliant?
A: Yes, the CORBIN Door Closer is ADA compliant, making it suitable for applications where accessibility is a priority.
Q: What is the maximum door weight this closer can handle?
A: The CORBIN Door Closer can accommodate doors weighing up to 250 pounds.
Q: What tools are needed for installation?
A: Self-drilling screws are included for installation, though additional tools such as a screwdriver and drill may be required.
Q: What is the fire rating for this door closer?
A: This door closer has a 3-hour fire rating, ensuring high safety standards in commercial settings.
Elegance Meets Functionality in Every Close
The CORBIN Heavy-Duty Door Closer seamlessly blends elegance with robust utility, closing doors with a graceful touch that feels both powerful and refined. Its concealed parallel arm becomes an aesthetic asset, offering a minimalist profile that enhances architectural lines. Perfect for both modern and traditional settings, it not only adds functionality but also contributes to a sense of controlled elegance so essential to luxurious interiors.
Ensure your doors' longevity and eleganceādiscover the reliability of the CORBIN Heavy-Duty Door Closer today!
